Welch Allyn RetinaVue 700 Imager – Portable Retinal Imaging System
Includes: Welch Allyn RetinaVue 700 Imager (#RV700-B), Hard Storage Case, Lithium-Ion Battery, and IEC Plug Type-B.
Warranty: 1 Year Manufacturer Warranty.
📷 Simple, Smart Retinal Imaging for Primary Care
The Welch Allyn RetinaVue 700 Imager is an advanced handheld retinal camera designed to simplify and improve eye screening in primary care settings. This FDA-cleared device helps detect diabetic retinopathy and other serious eye conditions — no need for chemical dilation or a trained eye specialist.
With automatic focus, alignment, and image capture, even non-specialist users can capture high-resolution retinal images quickly and efficiently. The RetinaVue 700 integrates directly into your workflow via WiFi or EMR connectivity, making it perfect for busy practices or mobile healthcare environments.
✅ Key Features & Benefits
- 📐 60° Wide Field of View: See more of the retina in a single image.
- 🧠 Smart Auto-Capture: Automatically adjusts for focus and alignment.
- 👁️ Small Pupil Imaging: Works on pupils as small as 2.5 mm without dilation.
- 🔗 EMR Integration: Bi-directional interface with systems like Epic, Cerner, and athenahealth.
- 🔒 HIPAA-Compliant: Works exclusively with RetinaVue Network software (subscription required).
- 🌐 Wireless Connectivity: Uploads securely via WiFi to the Microsoft Azure cloud.
- 📱 4.3" LCD Touchscreen: Easy-to-use interface for real-time preview and capture.

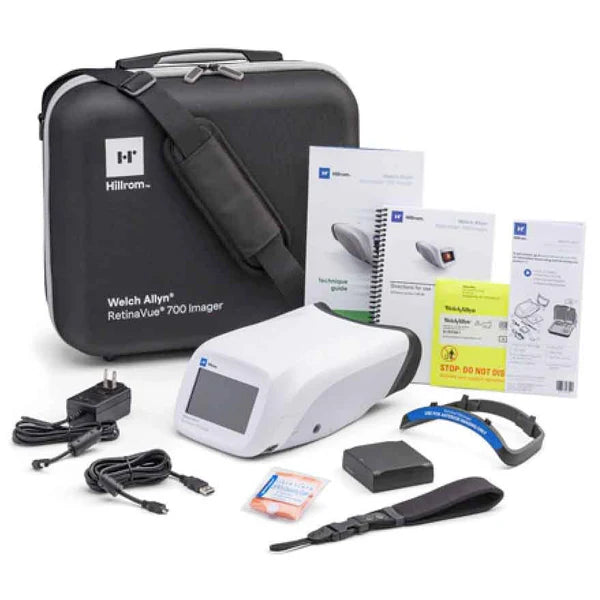

📦 What’s Included
- Welch Allyn RetinaVue 700 Imager
- Rechargeable Lithium-Ion Battery
- Hard Storage/Transport Case
- IEC Plug Type-B
- 1-Year Warranty
⚙️ Technical Specifications
-
Field of View: 60° (Typical)
-
Image Resolution: 2592 x 1944 pixels
-
Diopter Range: -20 to +12 D
-
Pupil Size: ≥ 2.5 mm
-
Focus: Auto + Manual
-
Image Formats: Encrypted JPEG, DICOM
-
Connectivity: WiFi, Micro USB
-
Power: 100–240V AC, 50/60 Hz
-
Dimensions: 11.4" x 6.6" x 4.8"
-
Weight: 2.8 – 3.0 lbs (Battery Dependent)
💡 Ideal For
- Primary Care Clinics
- Diabetes Screening Programs
- Endocrinology Practices
- Telehealth & Mobile Medical Services
Note: A subscription to the RetinaVue Network software is required for operation. This software is HIPAA-compliant, FDA-cleared, and hosted securely on Microsoft Azure. Subscription is billed per camera, per month.
