How the Electrocardiogram Machine Changed the World

Over 100 years ago, the first electrocardiogram (EKG or ECG) machine was developed and it revolutionized cardiology. EKGs record the heart’s electrical activity, and medical professionals use this information to assess their patients’ heart health, detect abnormalities, and diagnose cardiac conditions.

The EKG contributed substantially to our understanding of the heart and empowered us to improve cardiovascular care. Examine the history of this device to learn how the electrocardiogram machine changed the world.

Augustus Waller and the Origins of the EKG Machine

Augustus Waller was a British physiologist who made the first recording of cardiac electrical activity using a capillary electrometer. Measurements were based on the displacement of mercury in a glass tube.

Waller’s measurements were imprecise, but his insight laid the foundation for the development of the EKG machine and contributed to a growing understanding of the heart. For example, his studies on cardiac electrical activity proved that cardiac contractions start at the heart’s apex and end at its base. Waller also coined the term “electrocardiogram.”

Willem Einthoven, the Father of the EKG

Many consider Willem Einthoven, a Dutch doctor and physiologist, to be the father of the electrocardiogram. He developed a string galvanometer that accounted for inertia and friction in capillaries, correcting the imprecision of Waller’s technique.

The string galvanometer recorded and amplified the heart’s electrical signals, a significant leap forward in electrocardiography. The string galvanometer measured small currents, causing the device’s fine wire filament to move. A light source shone on the filament to reveal its movements, which doctors could observe or photograph. The string galvanometer technique was in use in EKGs until the 1920s.

Willem Einthoven Wins a Nobel Prize

In 1924, Willem Einthoven was awarded the Nobel Prize in Physiology or Medicine for his work on the electrocardiogram. His invention created a detailed visual representation of the heart’s electrical activity, the EKG waveform, which enabled physicians to analyze cardiac abnormalities and diagnose cardiac conditions accurately.

How EKGs Have Impacted Cardiology

The introduction of the EKG machine revolutionized cardiology in several ways. They continue to provide many of the same benefits they provided historically today.

Early Detection of Cardiac Conditions

EKG machines allow for the early detection and diagnosis of heart diseases. With EKG monitoring, physicians can identify heartbeat irregularities and abnormalities that may signify an underlying heart condition. Early detection is crucial for timely treatment and preventing further complications.

Enhanced Monitoring of Heart Function

Secondly, EKG machines enable physicians to monitor patients’ heart function over time. Doctors can track changes in the heart’s electrical activity by conducting a series of EKG tests.

Monitoring the heart’s function helps healthcare providers assess the effectiveness of treatment or recognize the need for adjustments. This monitoring capability greatly enhanced the management of cardiac diseases and continues to guide clinical care.

Illustrate the Heart’s Response to Stress

The EKG machine provided valuable insight into how the heart functions under stress. In modern medical care, doctors order stress test EKGs to monitor and evaluate heart health and diagnose conditions such as coronary artery disease. Physicians can assess their patients’ cardiac response to exertion and identify limitations and abnormalities.

Early Changes to the EKG Machine

Over time, the EKG machine has undergone significant advancements and changes. Technological progress and advancements in medical knowledge have produced more accurate, portable, and easy-to-use machines.

The First EKG Machine

Einthoven’s EKG machine was enormous, weighing 600 pounds and requiring five trained operators. The machine contained a large electromagnet cooled by a continuous flow of water.

Einthoven’s subjects placed their hands and feet in large buckets of saline. The buckets were used as electrodes, conducting current from the surface of the subject’s skin to the string galvanometer.

1930s-1950s: Portable EKG Machines

The first portable EKG machine was unveiled by engineer Norman Jolliffe in 1939. The device weighed 35 pounds, allowing medical professionals to maneuver the machine where needed or to take the machine outside of hospitals.

In the 1950s, solid-state electronics replaced the need for string galvanometers. This development made EKG machines smaller, lighter, and more affordable. The first ambulatory EKGs were released in the 1950s, and these devices could monitor a patient’s heart activity while they did their usual daily activities.

1975: The Holter Monitor

The ambulatory EKGs of the 1950s were a vast improvement on portable EKGs, but they were still bulky and heavy. In 1975, the World Heal Corporation released the Holster monitor, an ambulatory EKG that was smaller, lighter, and more user-friendly. The Holter monitor’s design allowed for the widespread use of ambulatory EKGs.

Doctors continue to use Holter EKGs for long-term monitoring. Ambulatory EKGs can reveal intermittent and fleeting symptoms and record heart activity while the patient sleeps, which provides doctors with a more comprehensive understanding of the patient’s heart function.

Modern Developments in EKG Machine Capabilities

Advancements in EKG machine technology continue to improve the device’s diagnostic and monitoring capabilities. Innovation continues to enhance the detection and management of cardiovascular diseases.

Digital Technology and Wireless Connectivity

Technological and medical innovators continue to adapt electrocardiogram capabilities. While the earliest EKG machines used analog technology, modern machines digitally process and store data. The shift to digital processes allows for easier data analysis.

Modern EKG machines often come with wireless connectivity that allows real-time transmission of EKG data to healthcare teams. This capability allows for remote monitoring and enhanced collaboration between healthcare professionals.

AI and Pattern Recognition Software

Artificial intelligence and pattern recognition software perform automated EKG interpretation, processing the EKG waveform and providing insight for medical care teams. The first automated EKG programs were created in the 1970s, and they have become more sophisticated over time. Automated EKG interpretation makes data analysis more efficient and is a valuable support tool for healthcare teams.

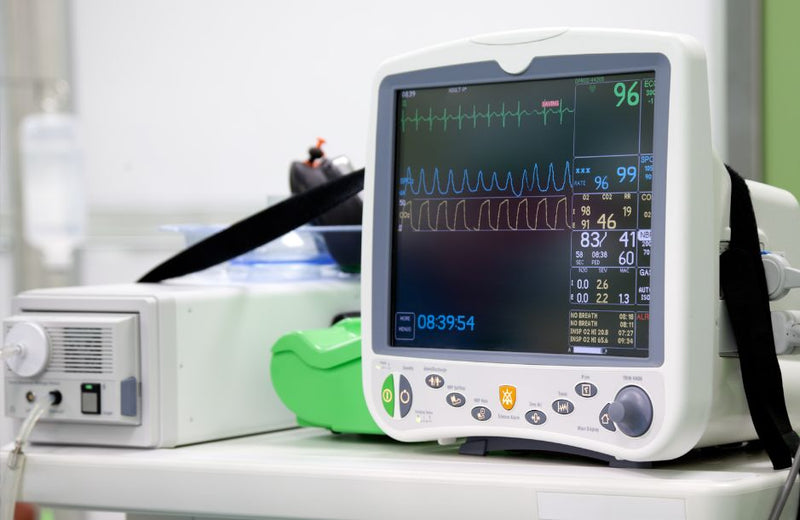

Enhanced Features

Modern EKG machines improve visualization and analysis capabilities. With features like high-resolution color displays and touchscreens, healthcare teams have clearer and more detailed views of EKG tracings. Clearer images improve the accuracy of data interpretation, enhancing patient care.

The electrocardiogram machine has changed the world by improving cardiovascular monitoring. Thanks to EKG machines, healthcare providers can monitor patient heart health, make accurate diagnoses, create treatment plans, and evaluate treatment efficacy.
