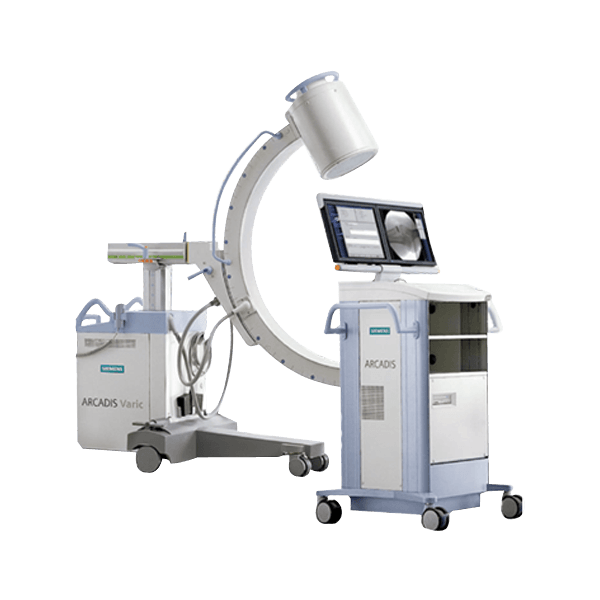

Siemens Arcadis Varic C-Arm Fluoroscopy

filler

Price:
Call For Price
 More payment options

Description

Siemens Arcadis Varic - Call Now for Price

Focused on improving everyday practice and solely led by your needs, ARCADIS Varic incorporates numerous unique to-the-point solutions. From image quality to operability, from versatility to efficiency, the ground breaking features of ARCADIS Varic set new benchmarks – with outstanding functionalities that make perfect imaging a snap and an overall ergonomic concept that redefines your clinical workflow in many fields of practice.



  • Precise imaging and perfect visualization
  • Easiest operation
  • Improved clinical workflow
  • Maximum flexibility in data handling
  • Truly digital navigation with NaviLink 2D
  • Perfectly thought-out and fully digital for outstanding image quality
  • High performance for demanding applications
  • Making acquisition a snap with EASY
  • Uncompromising performance in visualization
  • Straightforward operation right from the start



Siemens Arcadis Varic Specifications



Dimensions

  • H x W x D of C-arm frame, cm (in): 173 x 81 x 173 (68 x 32 x 68)
  • Weight: 236 (520) chassis, 180 (395) monitor cart

Generator

  • Power rating, kw @ 100 kvp (X-RAY GENERATOR): 2.3
  • mAs RANGE (X-RAY TUBE): 1-150 in 23 steps
  • Snapshot function (MONITOR): 0.2-23 mA
  • Kv range (X-RAY GENERATOR): 40
  • Ma range (IMAGING SYSTEM): 0.2-23
  • Kv range (X-RAY GENERATOR): 40
  • EXPOSURE TIME, sec (MICROMANIPULATORS): .5-10
  • Pulsed fluoroscopy (X-RAY GENERATOR): Yes
  • Abs control (MONITOR): Exposure, TV iris, camera gain
  • Aec (X-RAY GENERATOR): mAs
  • Pulses per sec (MONITOR): Up to 15s

C-Arm

  • Reverse position (C-ARM): Yes
  • Rotation (C-ARM): 130 (+90/-40)
  • Depth, cm (in) (PA GANTRY): 73 (29)
  • Free space, cm (in) (C-ARM): 78 (31)
  • Vertical movement, cm (in) (RADIATION DETECTOR): 40 (15.7) motorized
  • Horizontal travel, cm (in) (C-ARM): 20 (7.9)
  • Panning movement (C-ARM): 12.5
  • Pivot rotation, (C-ARM): 190
  • DICOM COMPATIBLE (Focal spot size, mm): Yes
