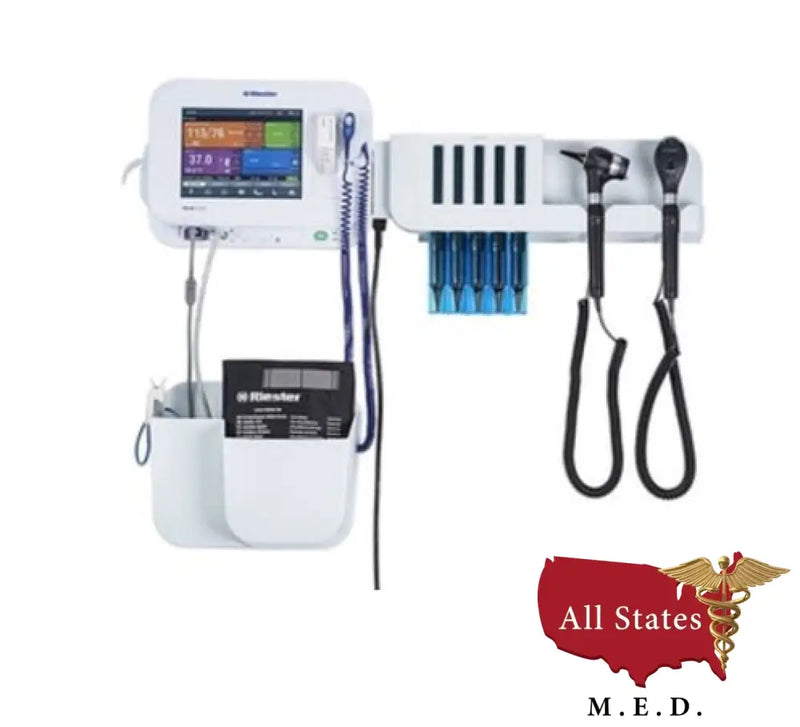

The Riester RVS-200 Wall Diagnostic System is a state-of-the-art modular vital signs and diagnostic platform designed for the modern clinical environment. Combining an advanced vital signs monitor with a fully customizable diagnostic station, the RVS-200 delivers exceptional efficiency, accuracy, and workflow optimization for hospitals, clinics, and primary care facilities.
Its highly flexible modular design allows practitioners to configure the system according to their specialty needs—reducing equipment clutter, improving diagnostic accuracy, and streamlining patient assessments. The brilliant 8-inch high-sensitivity TFT color touchscreen features an intuitive, self-explanatory user interface with an integrated help function, ensuring effortless operation for clinicians at all experience levels.
The RVS-200 provides three versatile measurement modes—Monitor, Spot-Check, and Triage—and displays NIBP, MAP, Pulse, Temperature, Plethysmogram, and SpO₂ values with clinical precision. The system offers multiple SpO₂ technologies: Riester, Masimo, or Nellcor Oximax, and can be equipped with the Filac 3000 predictive thermometer for fast, reliable temperature readings.
Designed for modern healthcare, the RVS-200 supports HL7 EMR connectivity, LAN communication, optional wireless integration, and optional onboard printing. With internal memory for up to 5,000 measurements, programmable alarms, advanced NIBP averaging, and an impressively long-lasting Li-ion battery, it ensures maximum clinical uptime.
The wall system also includes two integrated LED-illuminated diagnostic handles, an integrated specula dispenser, and compatibility with a wide range of ri-scope L otoscopes and ophthalmoscopes, creating a complete diagnostic hub directly at the point of care.
Features & Benefits
-
Advanced modular diagnostic wall system combining vitals monitoring and diagnostic instrumentation
-
Three measurement modes: Monitor, Spot-Check, Triage
-
8" high-sensitivity TFT color touchscreen with intuitive UI and integrated help function
-
Displays: SYS, DIA, MAP, Pulse, Temperature, Plethysmogram
-
Clinical-grade NIBP with programmable averaging (2–5 readings)
-
Choice of Riester, Masimo, or Nellcor Oximax SpO₂ technology
-
Optional Filac 3000 predictive thermometer
-
HL7 EMR connectivity, LAN standard, optional wireless
-
Programmable audible/visible alarms with 3 priority levels
-
Nurse-call support (RJ11 port)
-
Lithium-ion battery with up to 11–17 hours of operation
-
Internal memory for 5,000 readings
-
Power supply for up to 3 diagnostic handles
-
Maintenance-free, high-performance LED illumination
-
Integrated specula dispenser
-
Compatible with Riester ri-scope L otoscopes & ophthalmoscopes (sold separately)
-
Available as wall, desk, or mobile configurations
-
Optional integrated printer and mobile stand
-
Discreet, easy-to-clean wall installation
Materials Included
-
Riester RVS-200 Advanced Vital Signs Monitor
-
(1) NIBP Extension Tube
-
(2) NIBP Cuffs (Adult & Large Adult with connectors)
-
(2) Integrated Diagnostic Handles (for Otoscope & Ophthalmoscope)
-
(1) SpO₂ Sensor (Riester, Masimo, or Nellcor — based on selection)
-
(1) SpO₂ Extension Cable (matching brand)
-
(1) Oral Temperature Probe (For Optional Thermometer)
-
(25) Probe Covers (For Optional Thermometer)
-
User Manual
Technical Specifications (Summary)
Monitor
-
Power: 100–240 V AC, 50/60 Hz
-
Battery: 10.8V Li-ion, 6600 mAh, up to 17 hrs ON time
-
Screen: 8" TFT color touchscreen
-
Dimensions: 270 × 225 × 200 mm
-
Ports: RJ45, USB, RJ11 nurse call, AC input
-
Alarms: Multi-tone, IEC 60601-1-8 compliant
NIBP
-
Method: Automatic oscillometric
-
Ranges: Adult, Pediatric, Neonatal
-
Accuracy: ±3 mmHg (static)
SpO₂ — Riester, Masimo, or Nellcor
Pulse Rate
Predictive Thermometer (optional)
Warranty Information
