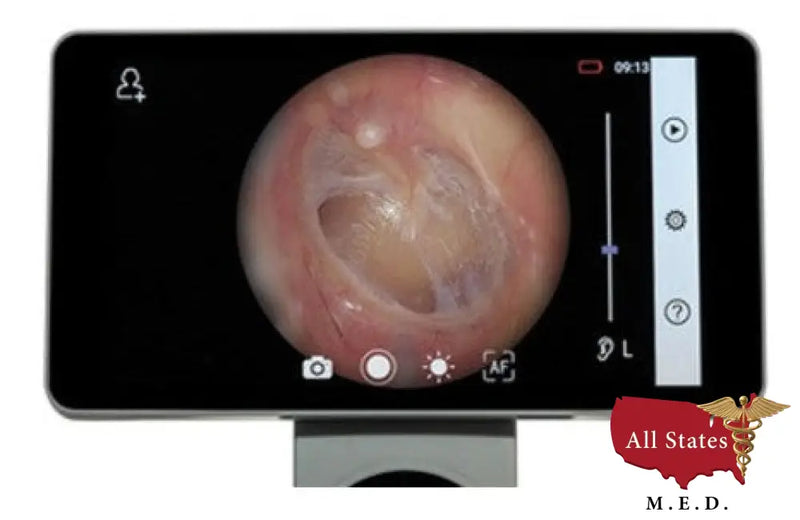

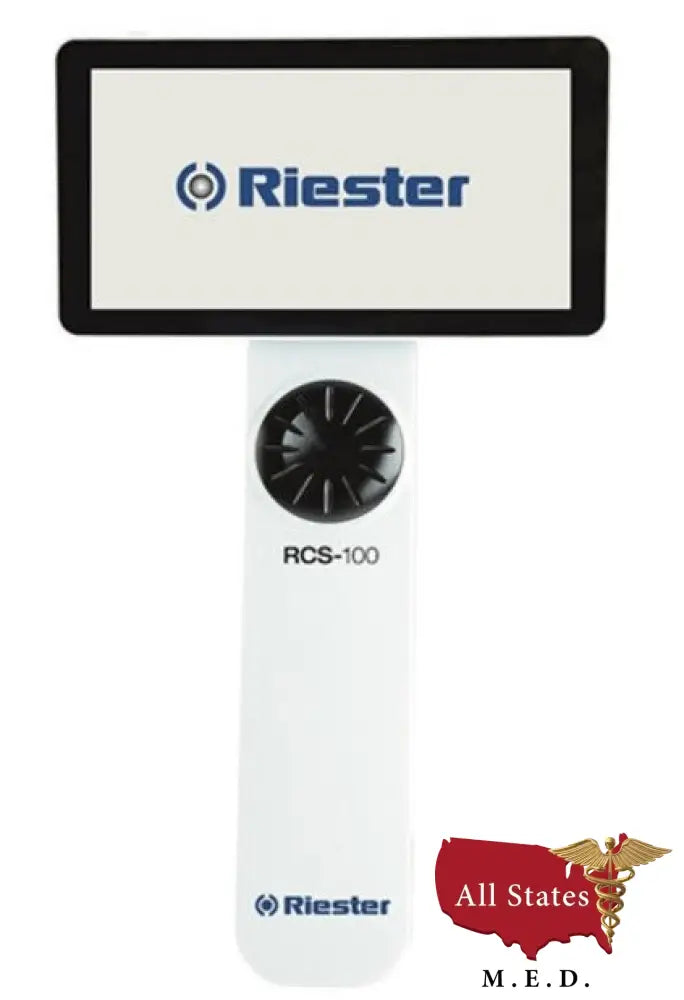

RCS-100 Camera Unit

The RCS-100 camera unit delivers accurate first diagnoses and supports consistent follow-up treatment through high-quality imaging and intuitive operation. Designed for dermatology, ENT, and general clinical use, this digital medical camera offers advanced imaging capabilities, long battery life, and an easy-to-navigate user interface.

Features & Benefits

• Rechargeable Li-ion battery for dependable power

• 5" Full HD color TFT-LCD touchscreen with scratch-resistant cover (1280 × 720 px)

• User-friendly interface with touch controls and rotary wheel for one-hand operation

• 16 GB internal memory for images and videos

• Up to 3.5 hours of operating time in video mode

• Bayonet connector for fast lens changes between imaging, dermatoscope, and otoscope modules

• Image and video capture functions for documentation and diagnostics

• Focus settings: automatic (otoscope/general lens) or manual (all lenses)

• Multilingual UI: English, German, French, Spanish, Italian, Russian, Chinese, Arabic

• Ability to add new patient profiles directly on the device; information stored in the file name

• Charging time: 3 hours

Imaging

• 8 MP CMOS sensor for high-resolution, scalable images

• Image format: JPEG

• Video format: H.264

• Full HD resolution: 3264 × 2448 px

Connectivity

• Micro USB 2.0 connection (minimum cable length 180 cm)

• UVC function allows live image display on a second screen
