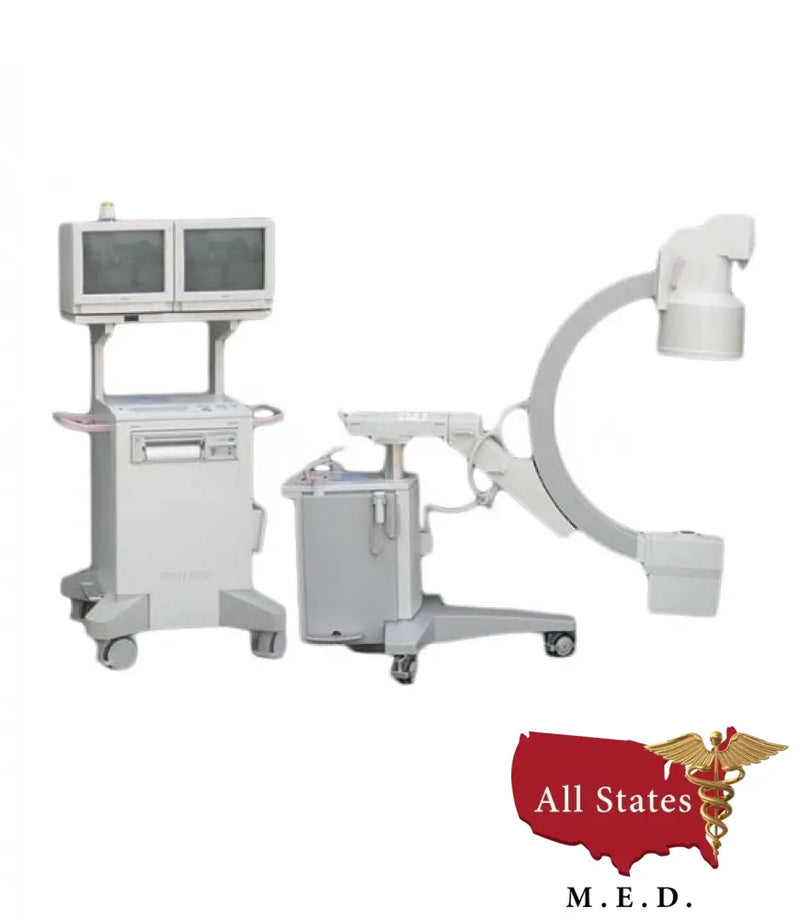

Philips BV 300 Plus C-Arm Fluoroscopy

Philips BV 300 Plus C-Arm Fluoroscopy



Philips BV 300 Plus - Call Now for Price

Tri-mode Image Intensifier

  • Dual High Resolution Monitors .



Options:

  • Vascular Application
  • Tri-Mode 12"/9/6 II
  • Has a Rotating Anode



Philips BV 300 Plus Specifications:

X-Ray System

Specialty Packages Available

  • Extended processing
  • Vascular functions
  • Extended vascular functions.

Generator

  • 2.1 kW full-wave.
  • Up to 110 kVp.
  • Up to 20 mA for radiographic film exposures.
  • Continuous fluoro boost mode up to 7.3 mA
  • Full power from outlet:
    • 50 Hz or 60 Hz.
    • 100V-15A to 240V-10A.

X-Ray Tube

  • Fixed anode X-ray tube.
  • Focal spots: 0.6 mm and 1.4 mm.
  • Anode heat capacity: 50,100 HU.
  • Anode cooling rate: 20,200 HU/min.
  • Housing heat capacity: 1,200,000 HU.
  • Anode angle: 12°.

Collimator

  • Iris collimation with dual opposing lead shutters allowing elliptical, round and rectangular collimation.
  • Minimum beam size < 5 X 5 cm2.
  • Iris and shutters are continuously variable.
  • All functions remotely controlled from the C-Arm control panel.

Fluoroscopy Mode

  • Focal spot: 0.6 mm.
  • kVp range: 40 – 110 kVp.
  • mA range: 0.1 – 3.1 mA Low Dose fluoro mode.
  • mA range: 0.2 – 7.3 mA continuous High Definition fluoro boost mode.
  • Auto and manual modes.
  • Continuous or Pulsed operation.
  • APF varies mA, kVp and camera gain.
  • User specific APF tables.

Pulsed Fluoroscopy Mode (optional)

  • Focal spot: 0.6 mm.
  • kVp range: 40 – 120 kVp.
  • mA range: 0.4 – 12 mA.
  • Pulse rate: 6.25 or 12.5 pulses per second.
  • Pulse width: 11 to 37 milliseconds.
  • Computer controlled APF, mA, kVp and camera gain.

Pulsed Fluorography Mode (optional)

  • Focal spot: 0.6 mm.
  • kVp range: 40 – 110 kVp.
  • mA range: Up to 60 mA.
  • Pulse rate: 3 to 30 pulses per second. (optional)
  • Pulse width: 8.0 / 9.5 / 11.1 milliseconds.
  • Computer controlled camera iris, mA, kVp, & camera gain.

Radiographic Mode

  • Focal spot: 1.4 mm.
  • kVp range: 40 – 105 kVp.
  • Fixed 20 mA.

Video Imaging System

Image Intensifier

  • 9 in Image Intensifier
    • Tri-mode 9 in / 7 in / 5 in image intensifier
      • 9 in.: 1.6 lp/mm
      • 7 in.: 2.2 lp/mm
      • 5 in.: 2.9 lp/mm
    • DQE: 65% (typical)
  • 12 in Image Intensifier (optional)
    • Tri-mode 12 in / 9 in / 7 in image intensifier
      • 12 in.: 1.2 lp/mm
      • 9 in.: 1.6 lp/mm
      • 7 in.: 2.2 lp/mm
    • DQE: 65% (typical)

Video Camera

  • High resolution CCD camera.
  • 525 line/frame.
  • 360° motorized rotation.
  • Left-right image reversal.
  • Top-bottom image reversal.
  • Negative mode.
  • Computer controlled features: (optional)
    • Gain.
    • Blanking.
    • Camera iris.

Video Monitors

  • Dual 17 in standard resolution, anti-glare, anti-static.
  • Ambient room light sensor.
  • Multi-LED X-ray "ON" indicator.

Hardcopy Options

  • Thermal printer. (optional)
  • DICOM. (optional)
  • Image Capture Device. (optional)

C-Arm Dimensions

  • Height: 69 / 89 in (1750 / 2250 mm)
  • Width: 35 in (880 mm)
  • Length: 72 in (1840 mm)
  • Weight: 695 lbs 300 kg

Workstation Dimensions

  • Height: 69 in (1760 mm)
  • Width: 37 in (930 mm)
  • Depth: 37 in (760 mm)
  • Weight: 463 lbs (210 kg)
