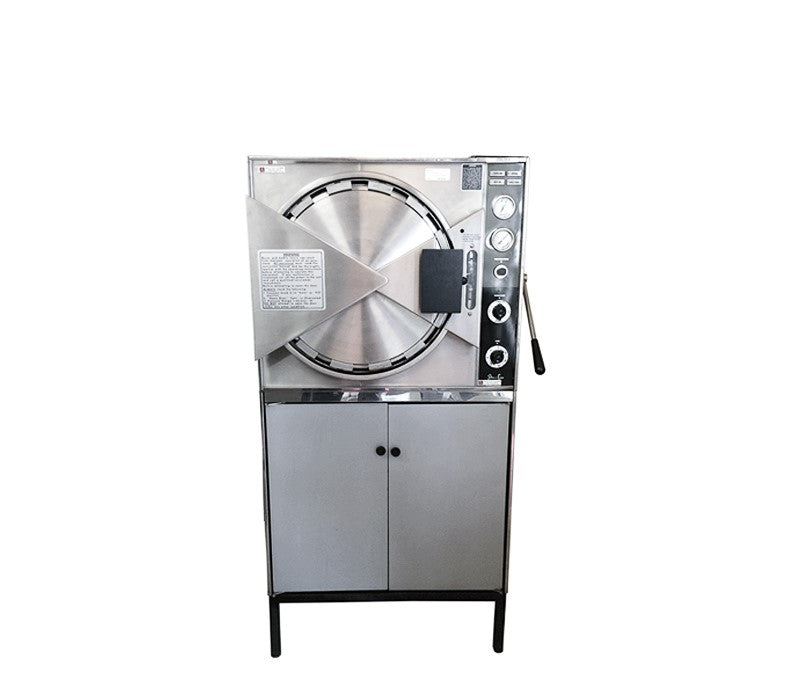

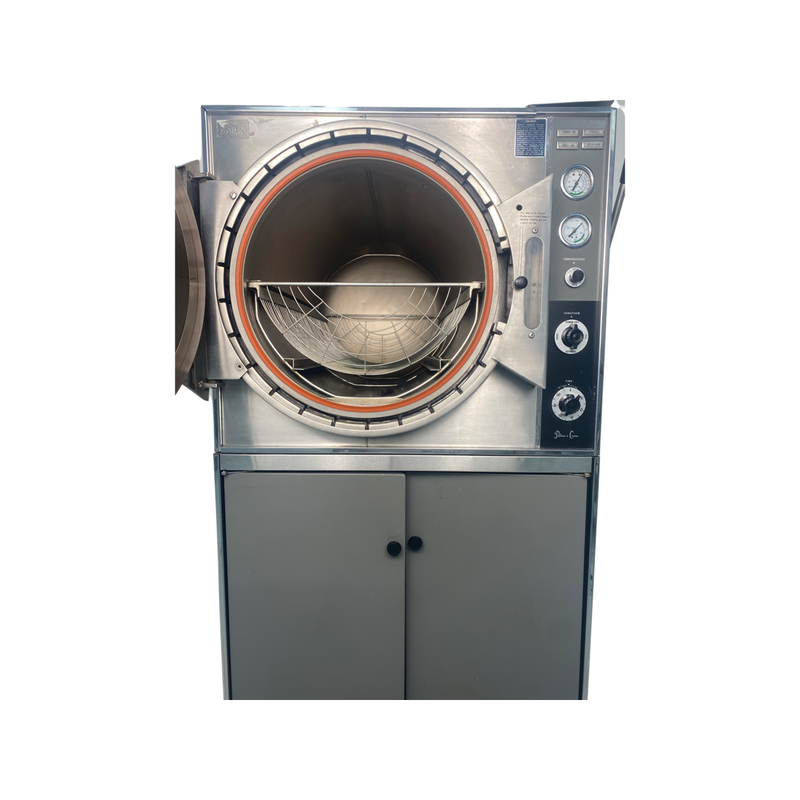

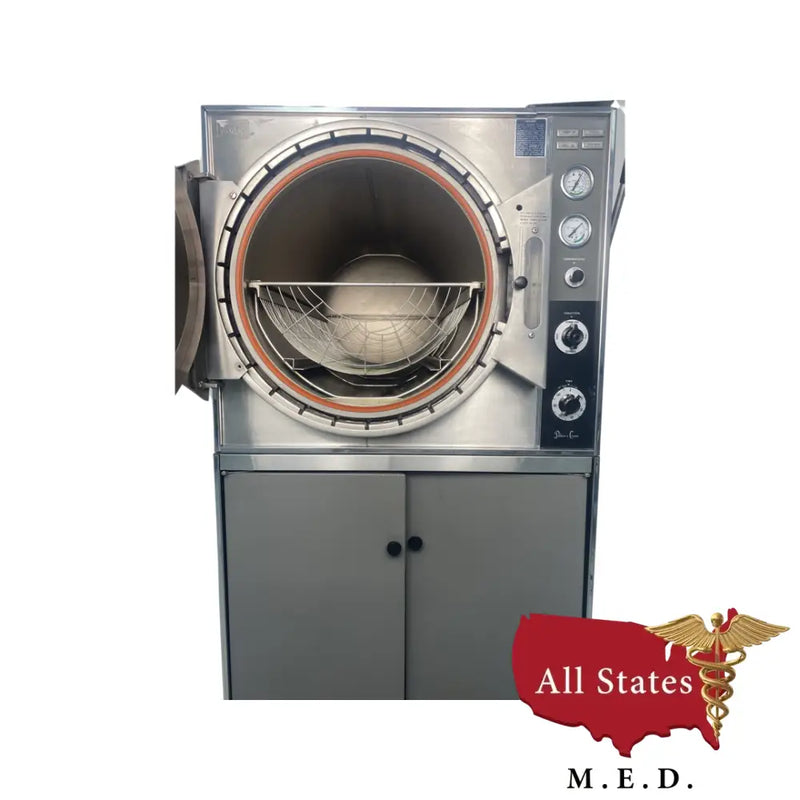

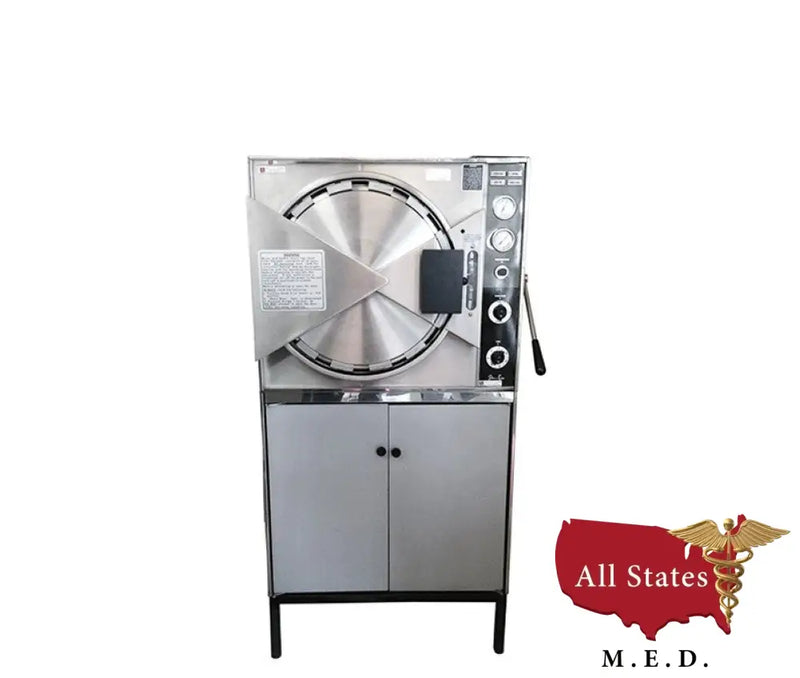

The Pelton & Crane Magnaclave is one of the most trusted large-capacity autoclave sterilizers in medical and dental environments. Known for its durability, safety, and ease of use, the Magnaclave features a spacious chamber and fully freestanding design — eliminating the need for complex plumbing, water pumps, reverse osmosis systems, or special ventilation.
Designed and manufactured to ASME specifications, this certified sterilizer meets all FDA requirements and delivers reliable steam sterilization performance for clinics, surgical centers, dental offices, and laboratories. Its large chamber (15″ x 26″) accommodates multiple instrument trays, making it ideal for high-volume practices.
The Magnaclave completes a flash cycle in approximately 18 minutes from a warm start and 35 minutes from a cold start, helping improve workflow efficiency. Separate temperature and pressure gauges with clearly marked sterilization ranges allow for easy monitoring, while indicator lights provide clear cycle status updates including “Power On,” “Heat On,” “Sterile,” and “Open Door.”
Advanced safety systems include a door safety lock, pressure-release indicators, heater interlock protection, and mechanical control stops — ensuring safe operation at all times.
This unit is refurbished, offering dependable sterilization performance at a cost-effective price.
Key Features & Benefits
-
Large chamber capacity (15″ x 26″)
-
Fully freestanding – no plumbing or special ventilation required
-
ASME-designed pressure vessel for safety
-
Meets all FDA sterilization requirements
-
Flash cycle: 18 minutes (warm start), 35 minutes (cold start)
-
Automatic timer activation at sterilization pressure
-
Separate temperature & pressure gauges
-
Clearly marked sterilization range indicators
-
Indicator lights for cycle status
-
End-of-cycle audible buzzer
-
Front-access reservoir drain for easy cleaning
-
Large water reservoir to reduce refilling frequency
-
Safety interlock system prevents operation unless door is locked
-
“Open Door” light indicates safe pressure release
-
Mechanical safety stops on function controls
-
Simple and secure door locking mechanism
-
Optional stand with storage (sold separately)
Specifications
Overall Dimensions:
28″ W x 34.5″ D x 53″ H (28″ H without stand)
Chamber Size:
15″ x 26″
Tray Capacity:
-
2 Trays
-
Small Tray: 5″ x 13″
-
Large Tray: 6.5″ x 13″
Condition
Refurbished
