TWO in ONE! World-renowned ECG technology and the highest standards in Spirometry
World-renowned ECG technology and the highest standards in Spirometry.
Three (3) Year Limited Warranty (On New)
6 Months On Refurbished
- Alphanumeric keyboard
- 6/12 channel representation of all 12 simultaneously acquired leads
- Pulmonary Function Testing for FVC, SVC, MV and MVV
The unique SP-250 disposable sensor minimizes the risk of cross-contamination
- Large, high resolution backlit monitor for easy preview of ECG quality and Spirometry curves

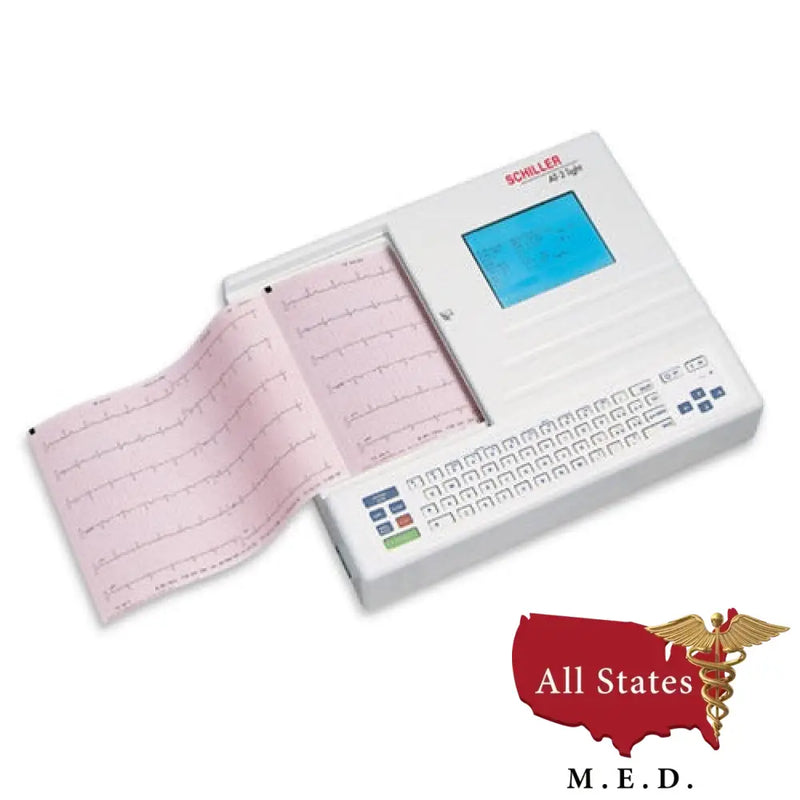

Schiller Cardiovit AT-2 Plus has an integrated high-resolution thermal printer for printed reports in A4 format and a large, clear LCD for visual support. The two selectable ECG printing options are the 6 channel ECG real-time printed reports or the automatic 6 /12 channel ECG printout on one or two pages at your choice. The measurement results of the two pulmonary function tests can be viewed and printed in four selectable formats: flow/volume graph, volume/time graph, table of measured values and real-time flow curve. In just 20 seconds you obtain the printouts in incomparably high quality and a ready-to-file format that include both diagnosis and measuring values. The printer features 3 selectable speed options, enlarged printout function and unlimited number of copies at your requirement. The high quality of the waveforms and their printouts is assured with the implementation of SCHILLER smoothing and baseline filters.
The AT-2 Plus acquires ECG monitoring results from 12 simultaneous leads facilitating a simultaneous recording of all 9 active electrode signals. The unit employs three active filters to assure the omission of muscle tremor, suppression of sinusoidal interference and a controlled frequency range of digital recording system.
Upgradeable to PFT.
Included Accessories with New:
● 10 Lead Patient Cable
● 10 Snap Clip Electrode Adapters
● 500 Disposable Electrodes
● One (1) pack of paper
● Power Cable
● Operating Manual
Pre-Owned Price Please choose variants for Brand New Pricing
The PFT in the picture is Optional please check the product specifications.
SP250 optional attachment
Accessories Included with A refurbished unit:
Patient Cables and Clips.
Must use Schiller paper for At-2 Plus EKG.
